Generic MIDI Controller Data

<< Click to Display Table of Contents >>

Navigation:  Viewing and Editing the Music Performance > Viewing and Editing Graphs of the Musical Performance >

Generic MIDI Controller Data

 Previous pageReturn to chapter overviewNext page

There are a variety of ways that you can control the sound of a MIDI device other than the most common ways described in the previous topics: channel volume, pan, pitch bend, and sustain pedal.

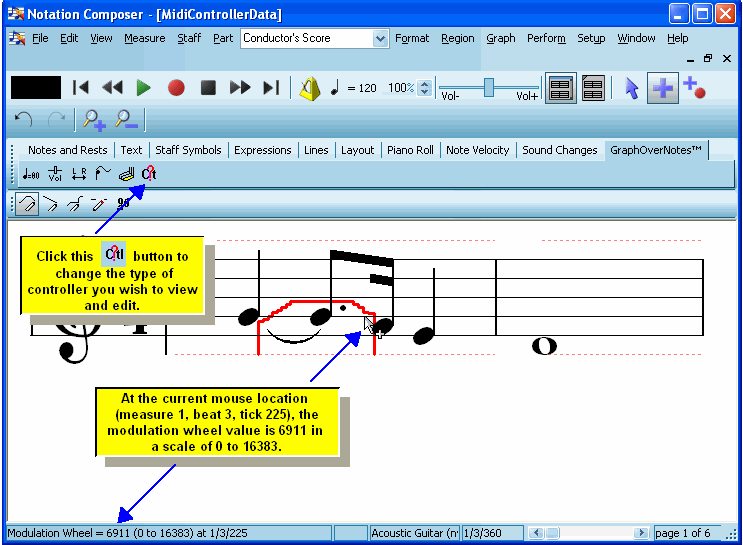

The following example shows the modulation wheel applied to the second note. The modulation wheel typically produces a vibrato effect.

ControllerGraphViewAndEdit-7


prcarrow To view and edit MIDI controller data:

1.With the mouse, navigate to the GraphOverNotestm Palette.

-- OR --

Type SHIFT+X.

GraphToControllerButtonNavigation

2.Click the MIDI Controller Data ControllerTypeButton button in the GraphOverNotestm Palette.

-- OR --

Type "c" for controller data.

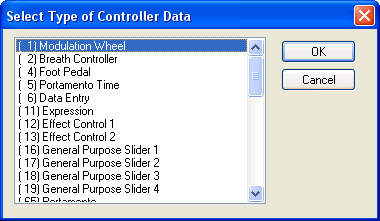

Composer will display the following dialog box:

ControllerDataTypeDlg
